Geberit Sigma Concealed Cistern 8cm

Geberit Sigma Concealed Cistern 8cm - 109792001 by Geberit

HELP

Geberit Sigma concealed cistern 8cm (UP720) With front access Suitable for Sigma, Bolero, Tango flush plates Installation depth of 80mm 0 The concealed cisterns are designed for back to wall floor standing pans

Geberit Sigma Concealed Cistern 8cm - 109792001 By Geberit

Images are for illustration only.

Normal leadtime is 3-5 working days provided items are in stock. Approximate delivery leadtime email will be sent after the order is processed.

F E A T U R E S GEB0000030

109792001

Geberit Sigma Concealed Cistern 8cm - 109792001

UP720 Sigma 8cm Concealed Cistern
For back to wall floor-standing WCs
Fully insulated against condensation
Front flush
Protection housing for service opening, can be cut to length
Flushing unit for dual flush and single flush

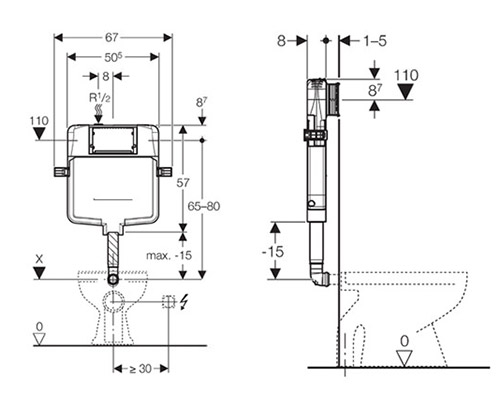

Dim : W670 x H800mm
Universal water supply connection compatible with MeplaFix, can be mounted and operated without tools
Parts included : Water supply connection R 1/2" male BSP parallel thread with integrated angle stop valve and hand wheel
Protection housing for service opening, Fastening material, Protection plug for flush bend
Flush volume, factory setting 5.8 and 3 l
Flush volume small range 3 - 4 l
Water supply pressure range 0.1 - 10 bar
Operating temperature water max. 25 °C
Connection hose to angle stop valve can be screwed without tools
Can be operated with used water (rainwater) provided it is passed through a filter system first
Water supply connection at the top, offset to the left side
Flush bend adjustable, 2 cm upwards and 1 cm downwards
Plates to use (not included)
- Sigma, Bolero & Tango
Acrylic Finish.
