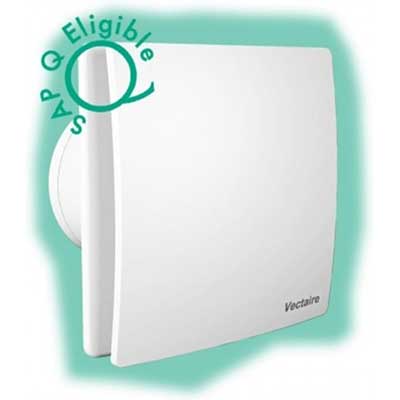

Vectaire Elegance 4" (100mm) Continuous Extract Fan with Comfort Timer

Vectaire Elegance 4" (100mm) Continuous Extract Fan with Comfort Timer by Vectaire

HELP

Vectaire Elegance is a SAP Q eligible (dMEV) ultra modern, technically innovative high performance, low noise level fan to exhaust air and fumes directly outside (through wall, or window installation with additional window kit, or with medium length ducting - up to 6m) suitable for any domestic wet room, toilets, shower-rooms, bathrooms, utility rooms and kitchens.

Images are for illustration only.

Normal leadtime is 7-10 working days provided items are in stock. Approximate delivery leadtime email will be sent after the order is processed.

F E A T U R E S VEC0000019

EL1003DT

Vectaire Elegance 4" (100mm) Continuous Extract Fan with Comfort Timer

energy efficient EC motor - lowest energy consumption in the UK
provides low level continuous ventilation to control condensation
3 speed axial fan
choice of 2 low speeds at installation
wall, ceiling or window (with additional window kit)
for any domestic wet room
low noise levels and running costs
Sfp down to .09 w/l/s
compliant with Building Regulations Parts L1 2013 and F 2013
runs continuously at pre-selectable choice of two lower speeds (fixed at installation)
Speed 1 operates at 9.5 l/s (factory set)
Speed 2 operates at 13.8 l/s
with anti-vibration gasket
all models incorporate cord which can be removed to allow other types of switching
speed boosted to maximum (28.5 l/s) using integral pull cord or by:
remote switch/light switch
PIR sensor
DRH240 (dynamic remote humidistat)

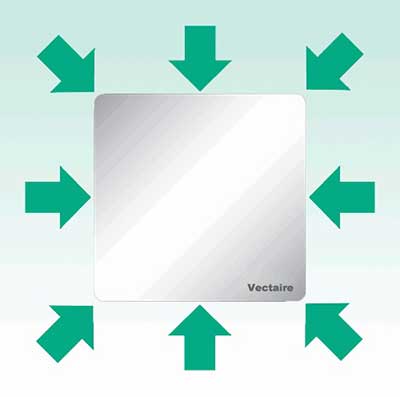

the design of the EL1003 allows intake of air around the whole perimeter

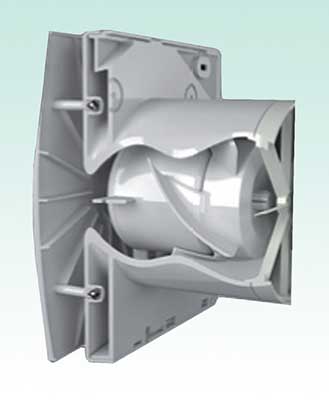

patented anti-turbulence deflectors ensure very low noise levels and optimum performance
energy saving ventilation
extremely low running costs
low carbon footprint
3 speed, continuous running with comfort timer (timer does not activate unless fan has been running for 2 minutes to avoid unnecessary night-time operation) and pull-cord

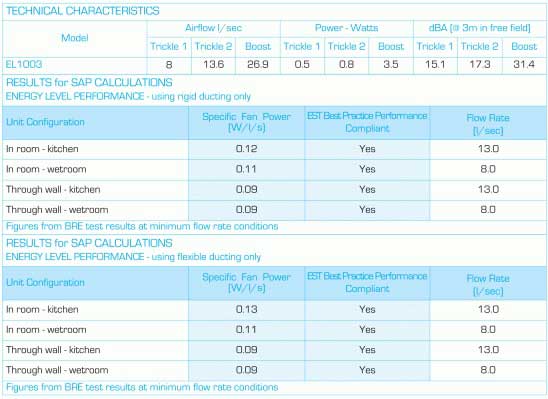

Specification
- shockproof, high quality technopolymer casing
- designed using latest wind tunnel technology and CFD simulations
- EC induction motor with thermal protection
- 30,000 hour life motors with maintenance free and long life ball bearings
- operates in ambient temperatures up to 40OC
- double insulated - no earth required
- IPX4 - Splashproof rated - can safely be installed in Zones I and II
5 years manufacturers warranty, 1 year parts and labour the remaining 4 years parts only
